DHR40 LED

DHR40 LED

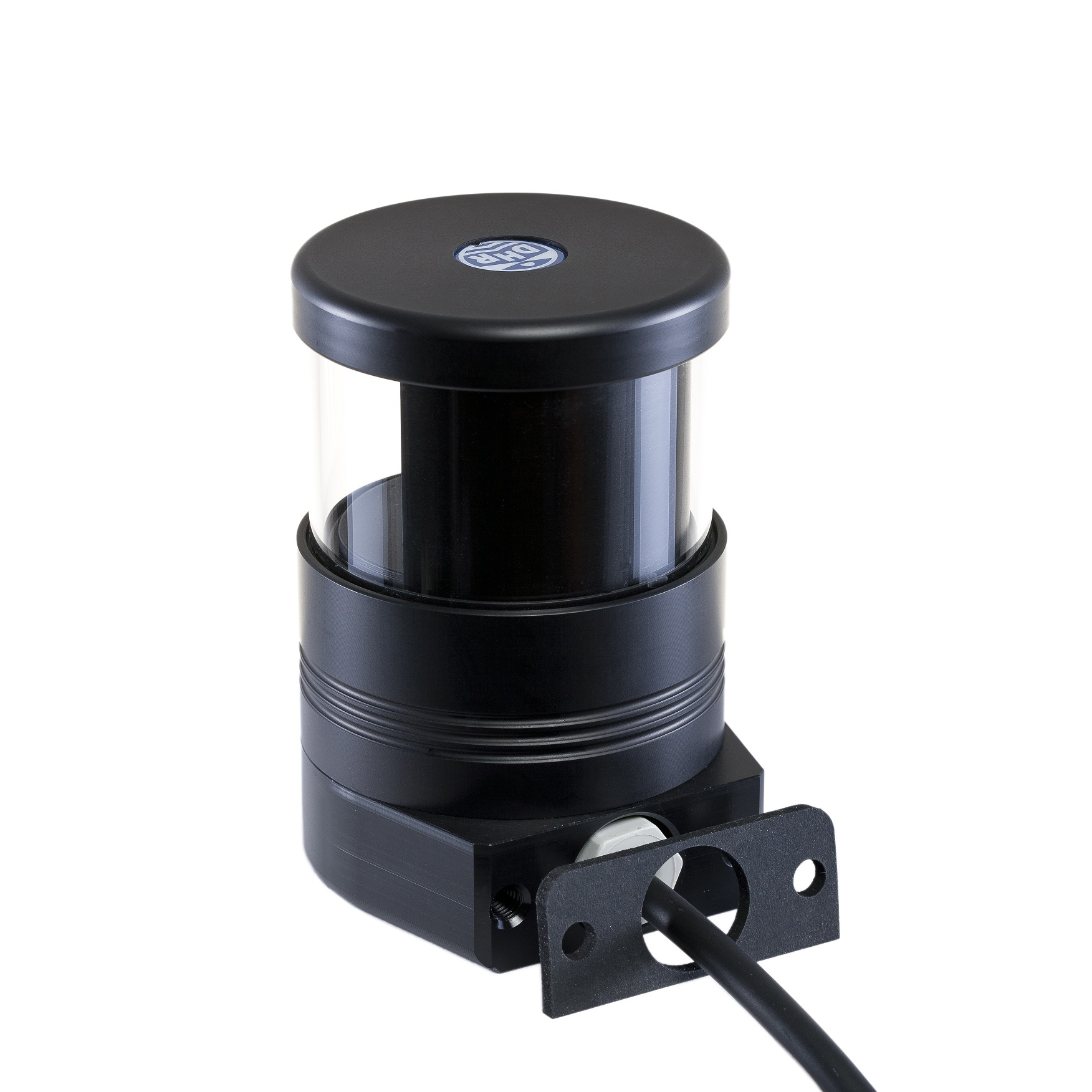

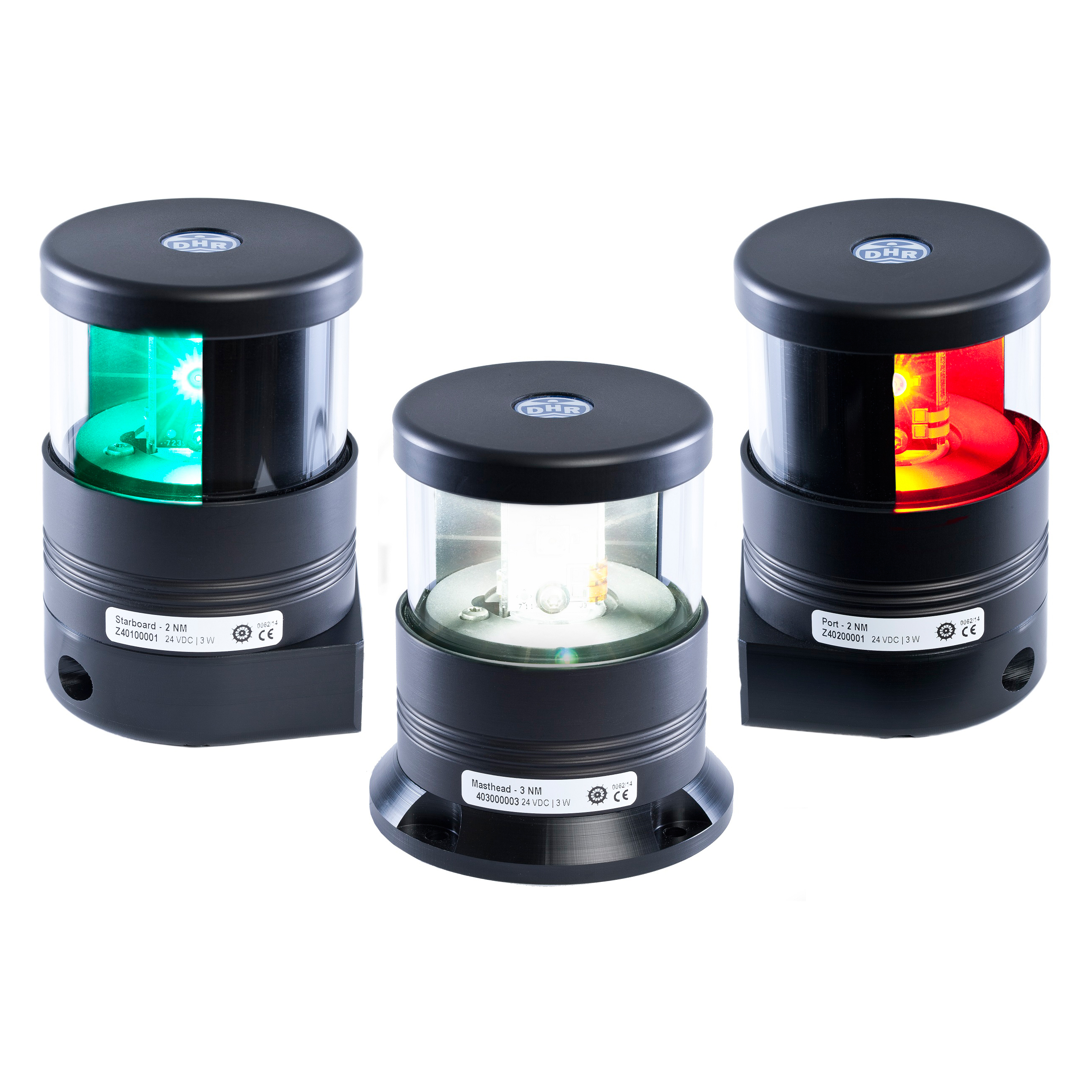

The DHR40 LED, our most compact navigation light with LED Technology. Ideally
suited for small boats and agile vessels, because of its excellent visibility characteristics at
high vertical angles. With a well thought out design, where style meets functionality, the
DHR40 LED sets the standard in navigation lighting. Another distinctive feature is the
availability of a flashing option. The use of automotive leds and high quality components
assures the most robust and durable navigation light. Interference noise does not
occur and with a 50.000 hour lifetime it reduces expensive maintenance costs to a
minimum.


Quote
Robust designNo noise interference
Waterproof IP66MED96/98/EC Wheelmark
Maintenance friendly24 VDC (-20% / +30%) Max. 4W
LEDExtended operational lifetime

Recently viewed

Application
Vessels less than 20 meters in length.
Inland navigation vessels
Seagoing vessels

Materials
Black, hard anodised seawater resistant aluminium
POM base to prevent galvanic corrosion
Borosilicate glass lens
Epoxy potted LED driver for maximum protection

Weight
0.5 Kg

Lifetime
50.000 hours

Approvals
MED 96/98/EC

Visibility
2 to 3 N.M.

Operating temperature
-25 to 55°C

Protection class
IP66

Powersupply
24VDC

Available models DHR40 LED







Article codes

Sector

Min. visibility

Power

Base mounted

Side mounted

Retrofit

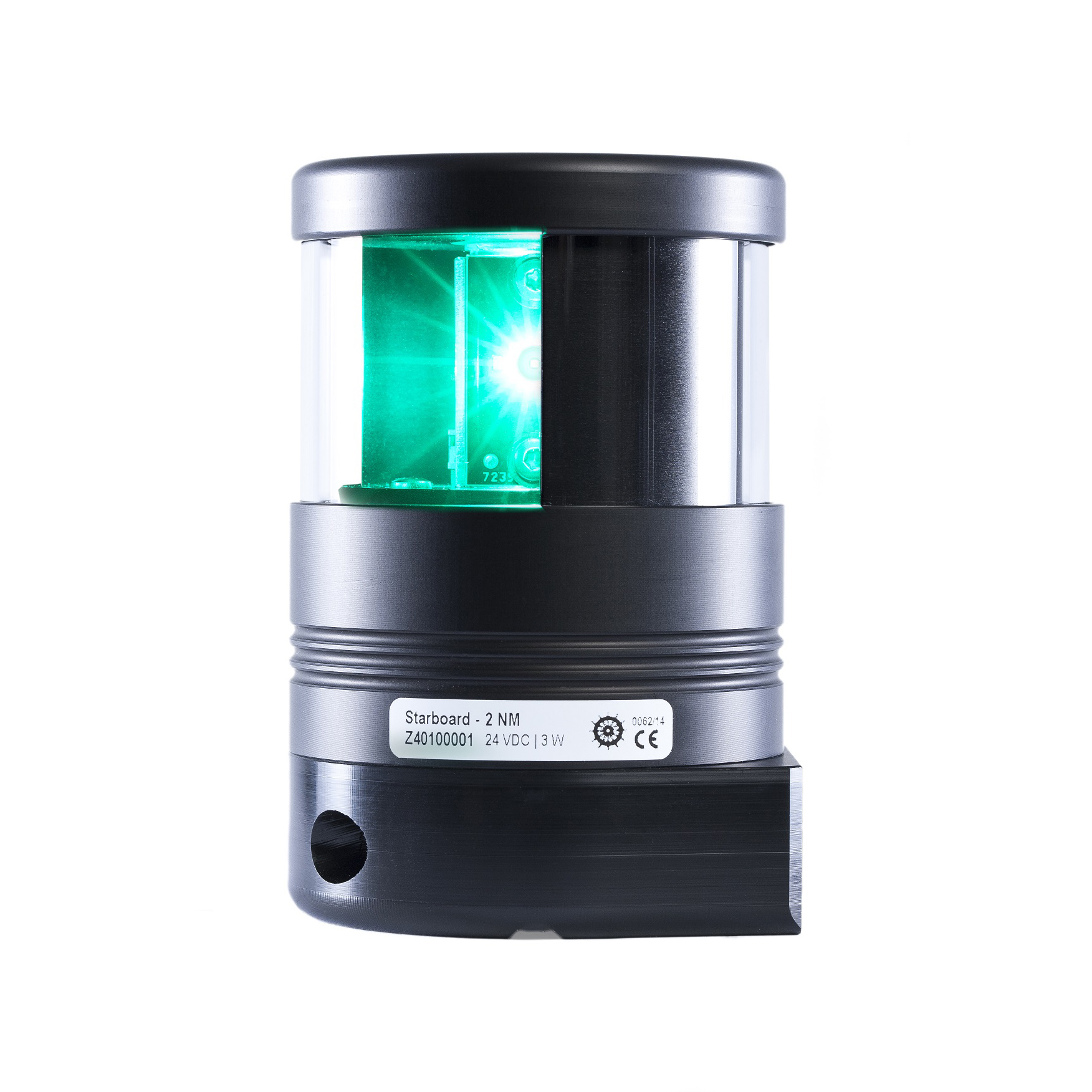

Starboard

2 N.M.

4.2W

40.01.00.00

40.01.00.01

40.01.00.02

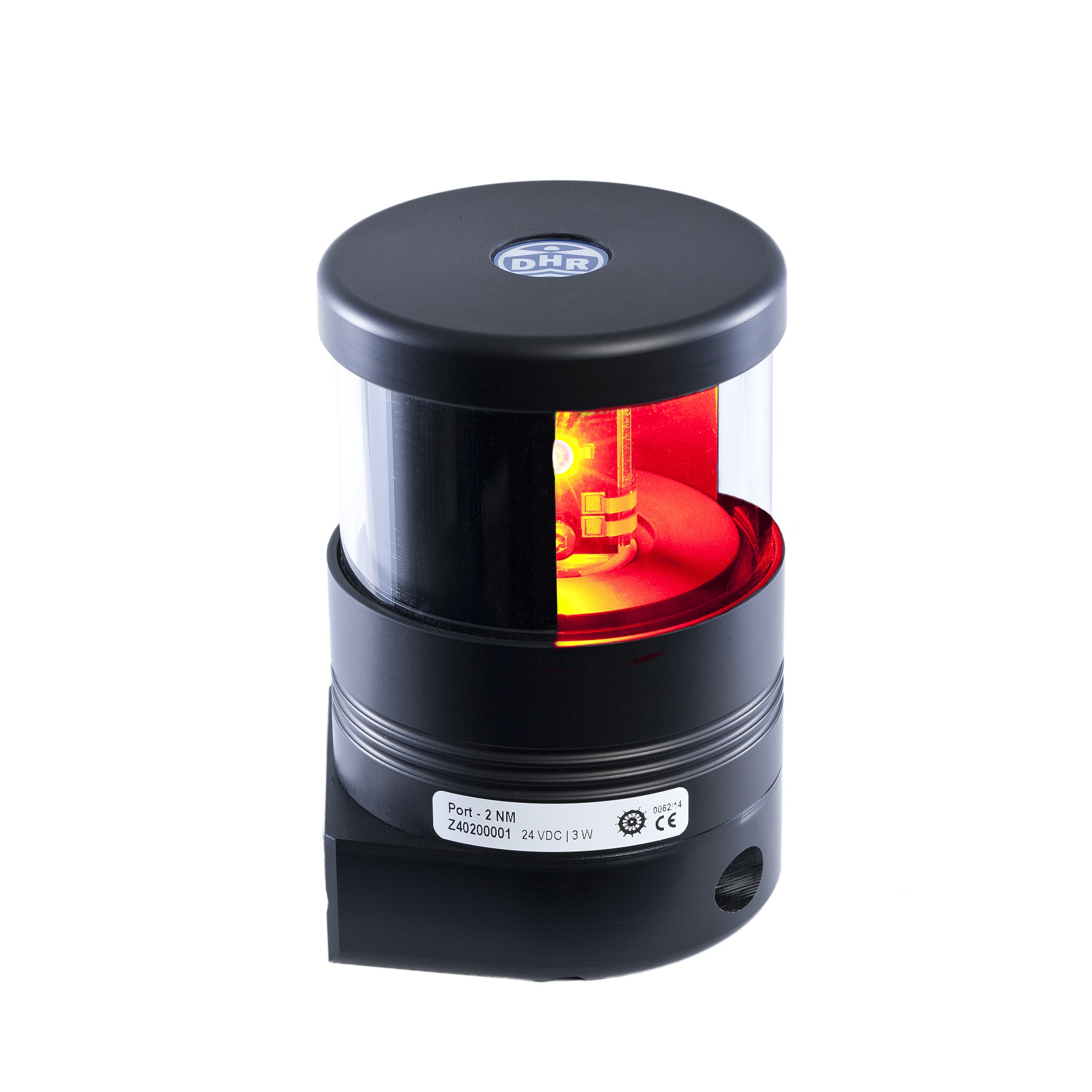

Port

2 N.M.

3.2W

40.02.00.00

40.02.00.01

40.02.00.02

Masthead

3 N.M.

4.1W

40.03.00.00

40.03.00.01

40.03.00.02

Stern

2 N.M.

4.1W

40.04.00.00

40.04.00.01

40.04.00.02

Towing

2 N.M.

3.1W

40.04.09.00

40.04.09.01

40.04.09.02



















Article codes

All-round lights

Min. visibility

Power

Base mounted

Side mounted

Retrofit

All-round white

2 N.M.

4.1W

40.06.00.00

-

40.06.00.02

All-round red

2 N.M.

3.2W

40.07.00.00

-

40.07.00.02

All-round green

2 N.M.

4.2W

40.08.00.00

-

40.08.00.02

All-round yellow

2 N.M.

3.1W

40.09.00.00

-

40.09.00.02

All-round blue

2 N.M.

4.1W

40.10.00.00

-

40.10.00.02



SKU:
40060000
/
Categories: DHR Marine, Navigation lights
