DHR70N

DHR70N

Quote
Robust designWaterproof IP56
MED96/98/EC WheelmarkMaintenance friendly
Bulb P28s24 VDC 40W 115/230 VAC 60-65W

Recently viewed

DHR260 Halogen marine searchlight remote controlled

Application
Sea-going vessels over 50m in length.
Nato codification

Materials
Matt black polyamide and polycarbonate, reinforced with fibreglass.
Corrosion free, seawater resistant and non-magnetic.
Polycarbonate Fresnel lens, shock resistant and interchangeable.

Wiring
1,5 meter neoprene cable H07 RN-F 2x1,5
PG13 Cable gland

Mounting
Base
Conversion kit for hoisting available

Weight
Sector lights and 180° screened lights: 2.6kg
All-round lights: 2.3kg

Approval
MED 96/98/EC

Visibility
3 to 6 N.M.

Protection class
IP56



Sector

Min. visibility

Lampholder

Approval

Article codes

Starboard

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.11.00.00

Port

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.12.00.00

Masthead

6 N.M.

P28s

COLREG’72

70.13.00.00

Stern

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.14.00.00

Stern Red

3 N.M.

P28s

Suez Canal

70.14.17.00

Towing

3 N.M.

P28s

COLREG’72

70.15.00.00











Article codes

All-round lights

Min. visibility

Lampholder

Approval

All-round

180° Screened

All-round white

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.16.00.00

70.16.01.80

All-round manoeuvring

5 N.M.

P28s

COLREG’72

70.16.10.00

-

All-round red

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.17.00.00

70.17.01.80

All-round green

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.18.00.00

70.18.01.80

All-round yellow

3 N.M.

P28s

COLREG’72

70.19.00.00

70.19.01.80

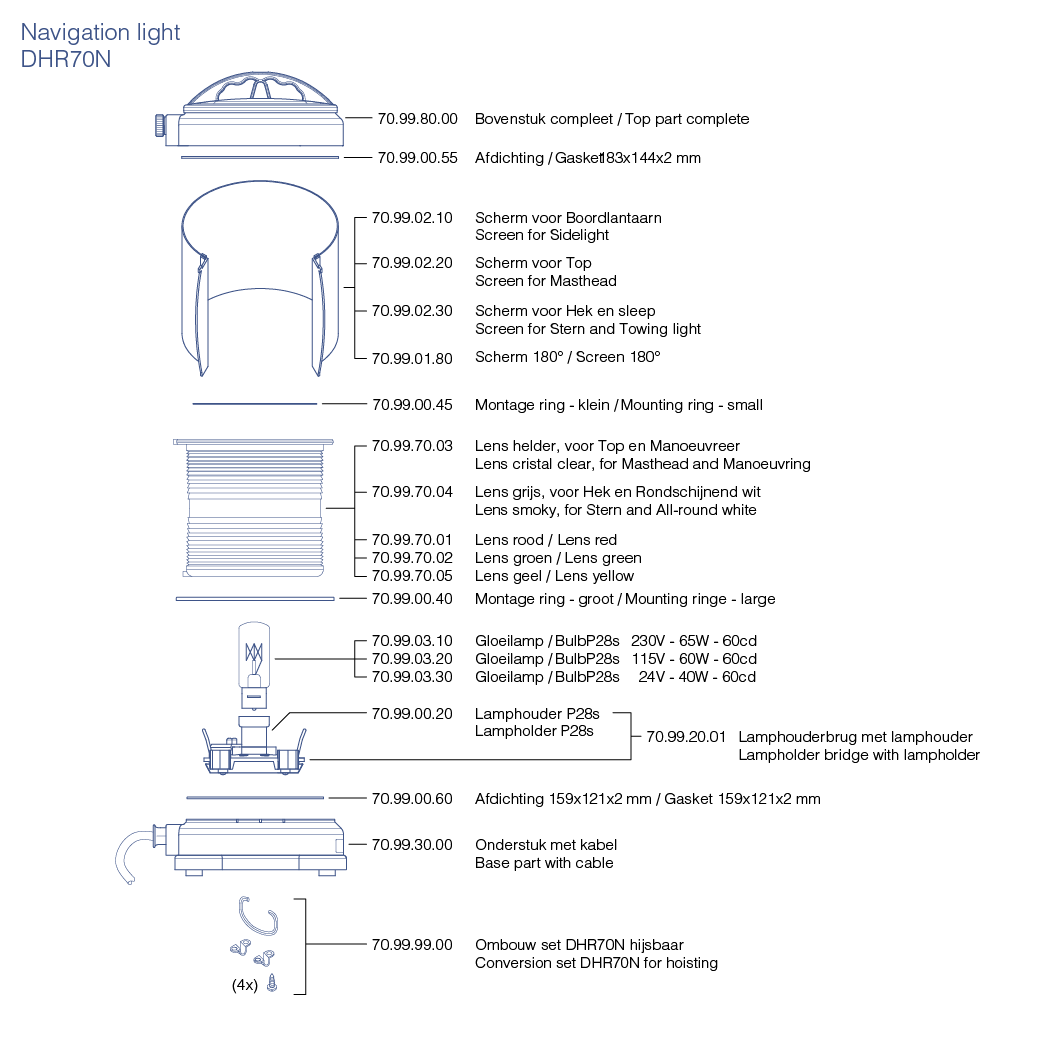

  Manual DHR70N



SKU:
70160000
/
Categories: DHR Marine, Navigation lights
