DHR180UC

DHR180UC

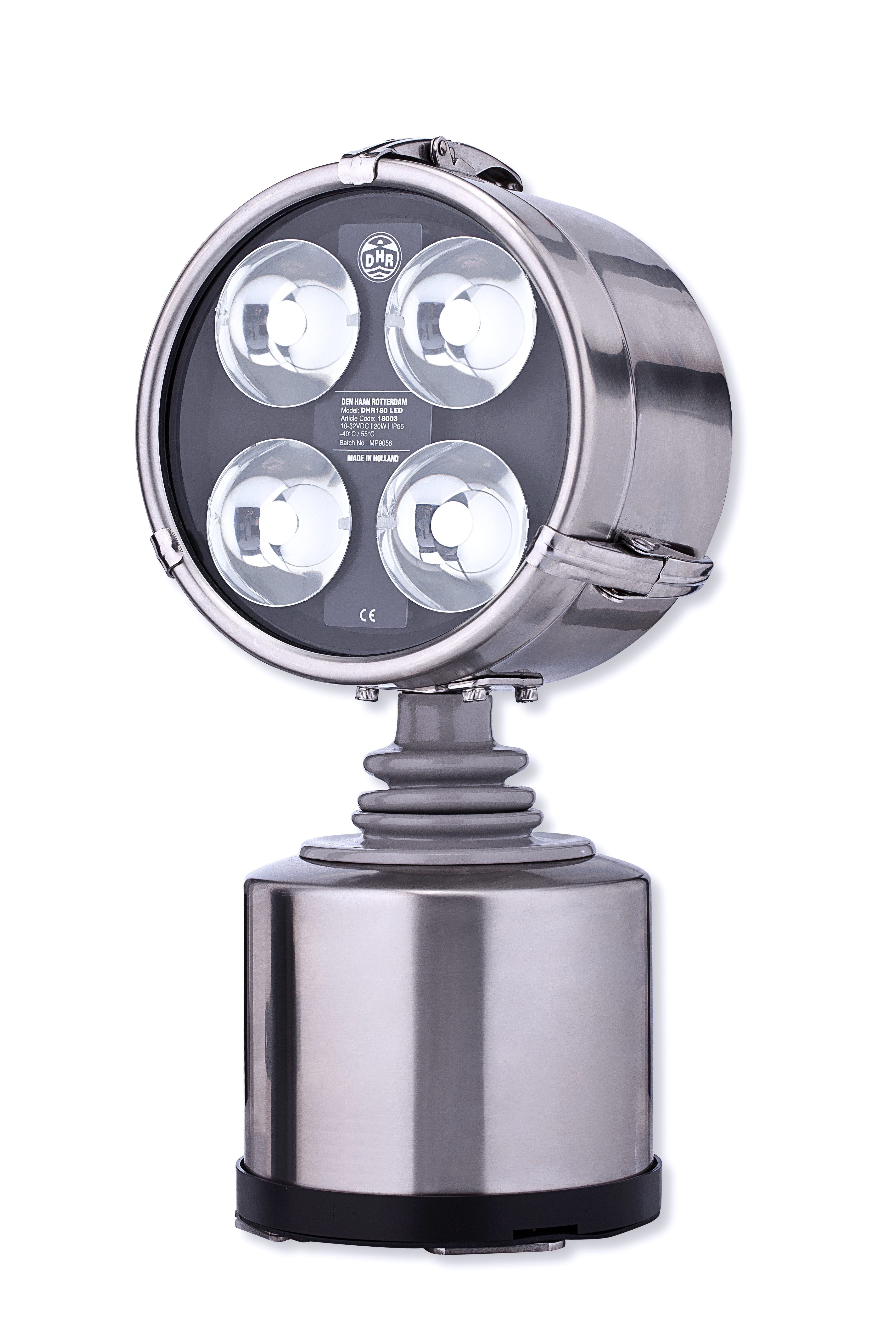

The DHR180 searchlight is one of the smaller searchlights manufactured by DHR. Made out of brushed stainless steel with a 12V or 24V Sealed beam lamp PAR56 and a range around 475 meters. The remote control UC is used for operation from the wheelhouse. A  big advantage is the flexibility in positioning of the searchlight. Independent of the location of the controls, it can be mounted anywhere on the vessel.


Quote
Medium beamWaterproof IP65
Maintenance friendlyHigh quality materials

Recently viewed

Materials
Brushed stainless steel 316 housing
All other materials are corrosion resistant and non-magnetic
Stainless steel 316 motor housing with black POM base

Weight
4.2 Kg

Optics
Sealed beam reflector

Protection class
IP65
Only suitable for inland navigation

Electric drive
Motors 4-10VDC / 6W
Pan 380°, Speed 32° p/s
Tilt -32° / +15°, Speed 5° p/s

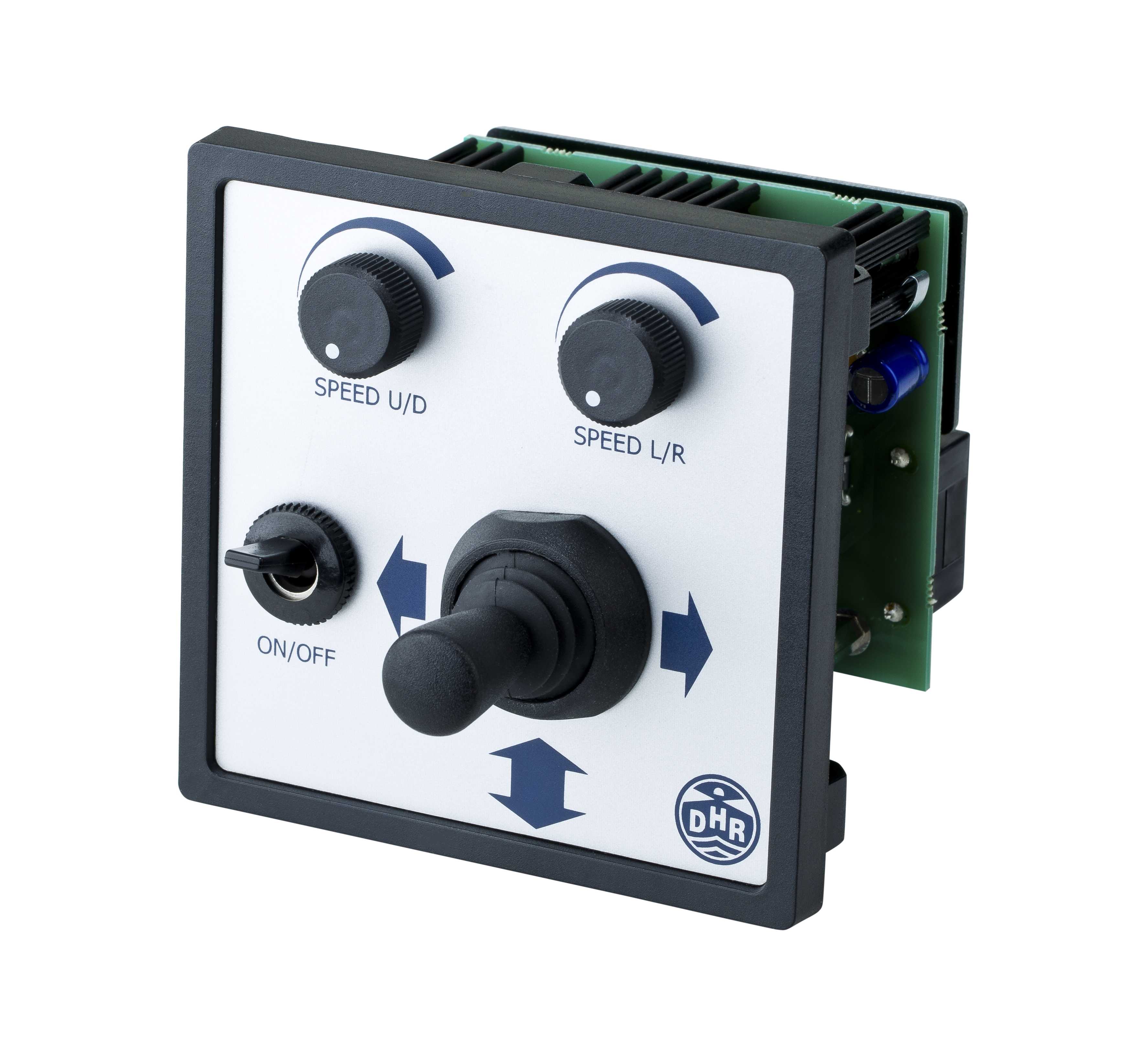

Control panel functions
On/off switch of the light source
Step-less speed control

Control panel supply voltage
12-24VDC

Model

Voltage

Lamp base

Power

Range at 1 Lux

Divergency at 50%

Light intensity

Article number

Remote control without panel

12VDC

Screw terminals

100W

475m

9°x5°

225.000 cd

180UC012

Remote control without panel

24VDC

Screw terminals

170W

480m

9°x8°

230.000 cd

180UC024

Remote control with control panel

12VDC

Screw terminals

100W

475m

9°x5°

225.000 cd

180UC012SET

Remote control with control panel

24VDC

Screw terminals

170W

480m

9°x8°

230.000 cd

180UC024SET



SKU:
180UC012
/
Categories: DHR Marine, Searchlights
