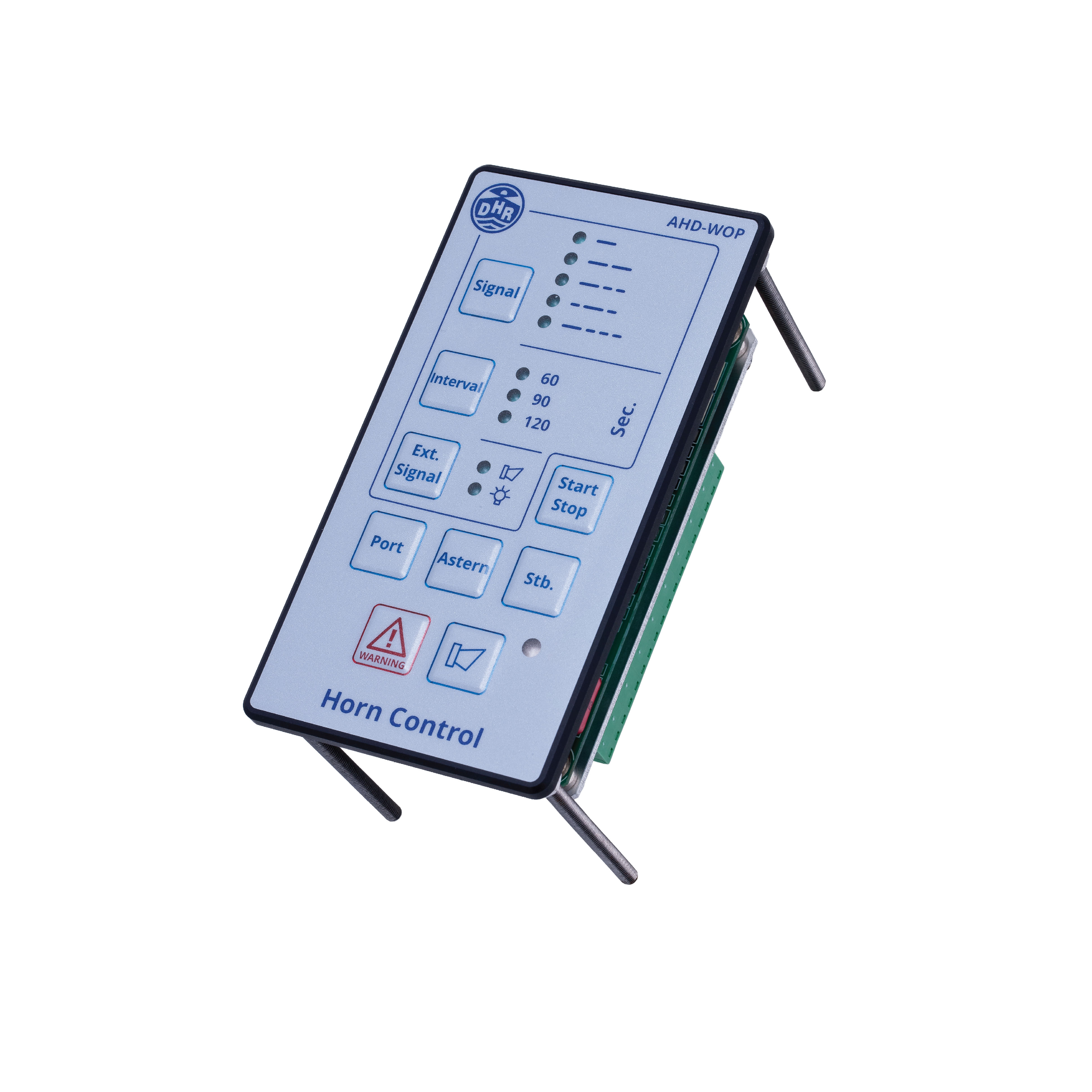

Air Horn Control Panel

Air Horn Control Panel

 Quote

Recently viewed

Application
To operate the DHR H400 and H300 Air horn series

Approval
Russian Maritime Shipping Register
All common signals according to ColReg'72

Features
Pre-programmed common signals
Three different interval options, 60, 90 and 120 seconds
2x relays for air horn control
2x relays for manoeuvring light
Push button for manual signalling
Pushbutton for switching manoeuvring light or air horn on/off

Pre-programmed signals
Altering course to port/starboard
Operating astern propulsion
Collision warning
Power-driven vessel making way through the water
Power-driven vessel making no way through the water
Vessel restricted in their ability to manoeuvre
Vessel at anchor
Vessel being towed

Electrical
24VDC (+30%/-25%), Max 400mA

Protection class
Front side IP67
Rear side IP20

Size
WxHxD 70 x 130 x 65mm

Weight
0.4Kg


  Technical Manual (available soon)



SKU:
40020
/
Categories: DHR Marine, Air Horns
