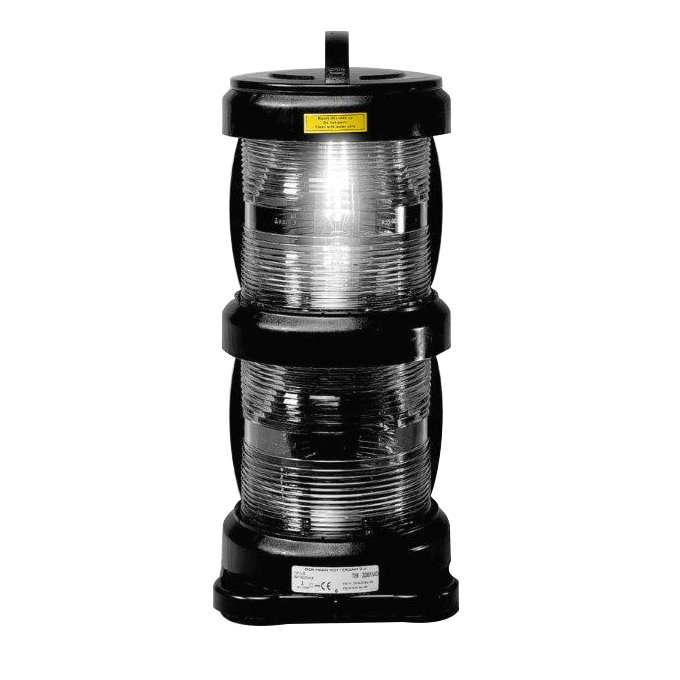

DHR70N Duplex

DHR70N Duplex

 Quote
Robust designWaterproof IP56
MED96/98/EC WheelmarkMaintenance friendly
Bulb P28s24 VDC 40W 115/230 VAC 60-65W

Recently viewed

DHR70n Alround white navigation light
DHR60 LED white navigation light masthead
DHR55n White masthead navigation light
DHR40 LED Navigation light port.
DHR73 white signalling light flashing or continuously burning

Application
Sea-going vessels over 20m in length.
Nato codification

Materials
Matt black polyamide and polycarbonate, reinforced with fibreglass.
Corrosion free, seawater resistant and non-magnetic.
Polycarbonate Fresnel lens, shock resistant and interchangeable.

Wiring
1,5 meter neoprene cable H07 RN-F 2x1,5
PG13 Cable gland

Mounting
Base

Weight
Sector lights and 180° screened lights: 4.1kg
All-round lights: 3.6kg

Approval
MED 96/98/EC

Visibility
3 to 6 N.M.

Protection class
IP56


Available models DHR70N Duplex

Sector

Min. visibility

Lampholder

Approval

Article codes

Starboard

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.21.00.00

Port

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.22.00.00

Masthead

6 N.M.

P28s

COLREG’72

70.23.00.00

Stern

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.24.00.00

Towing

3 N.M.

P28s

COLREG’72

70.25.00.00











All-round lights









Article codes

Sector

Min. visibility

Lampholder

Approval

All-round

180° Screened

All-round white

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.26.00.00

70.26.01.80

All-round red

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.27.00.00

70.27.01.80

All-round green

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.28.00.00

70.28.01.80

All-round yellow

3 N.M.

P28s

COLREG’72

70.29.00.00

70.29.01.80

All-round red over green

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.17.18.00

-

All-round green over red

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.18.17.00

-

All-round white over red

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.16.17.00

-

All-round red over white

3 N.M.

P28s

COLREG’72 – RPR/BPR

70.17.16.00

-








  Manual DHR70N Duplex



SKU:
70161700
/
Categories: DHR Marine, Navigation lights
