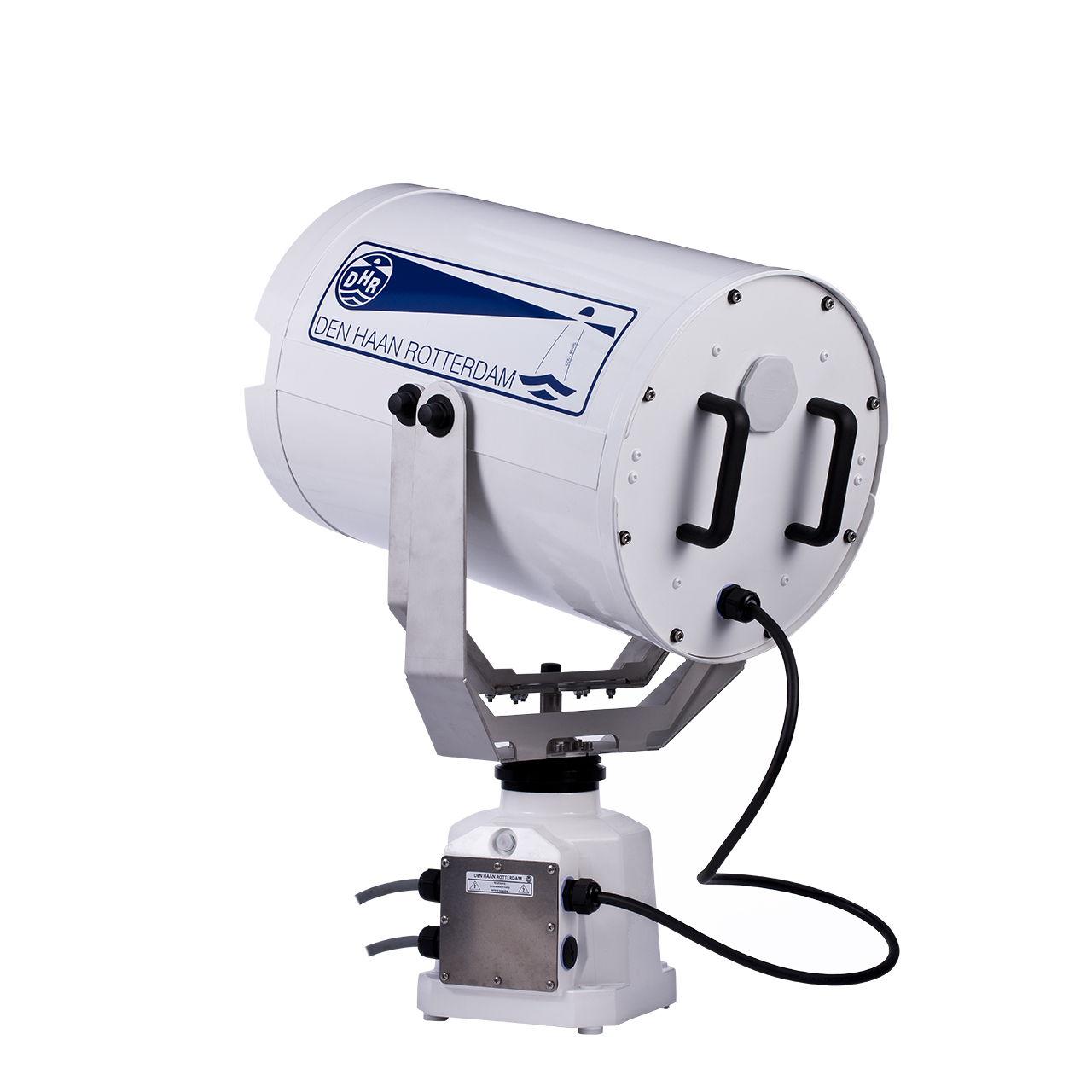

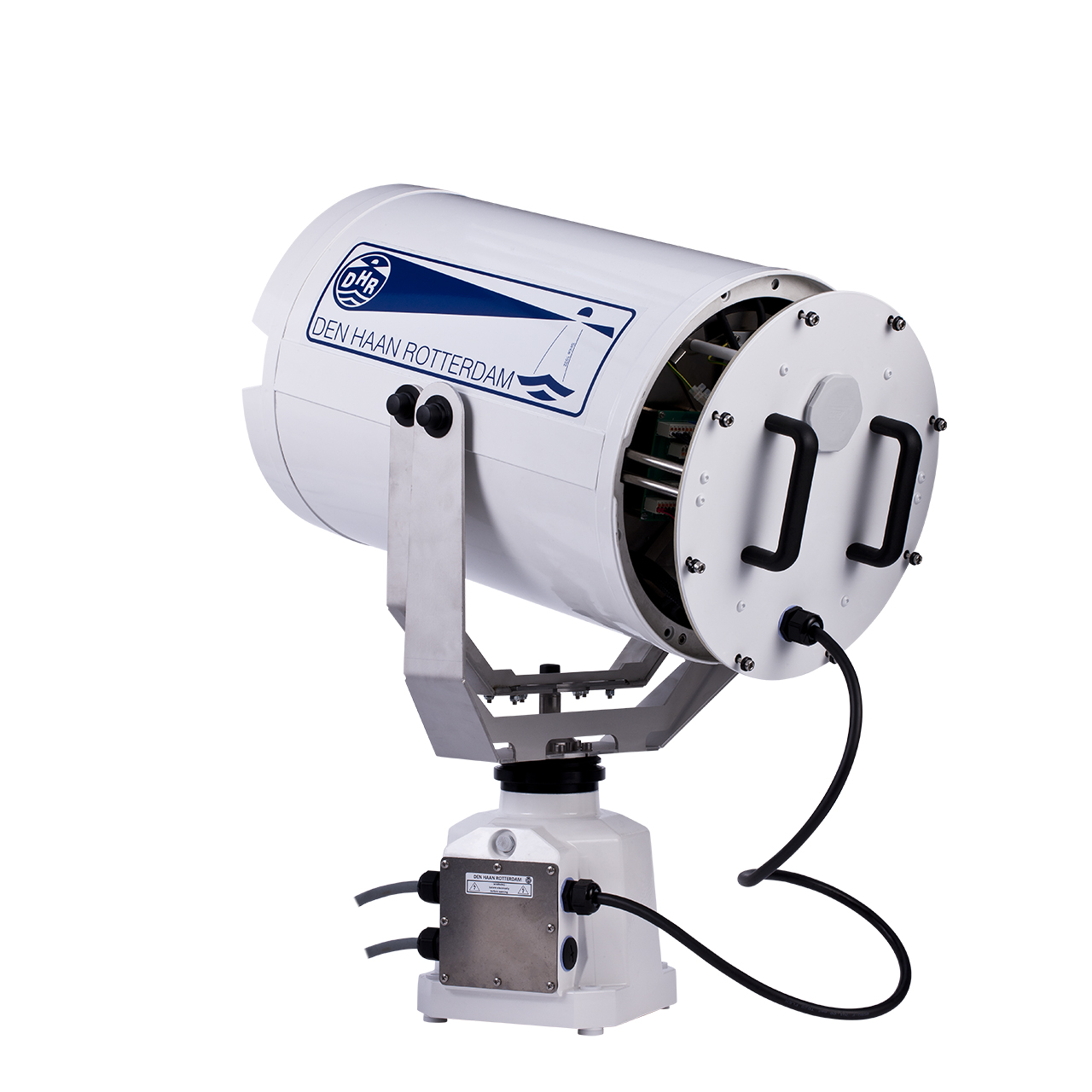

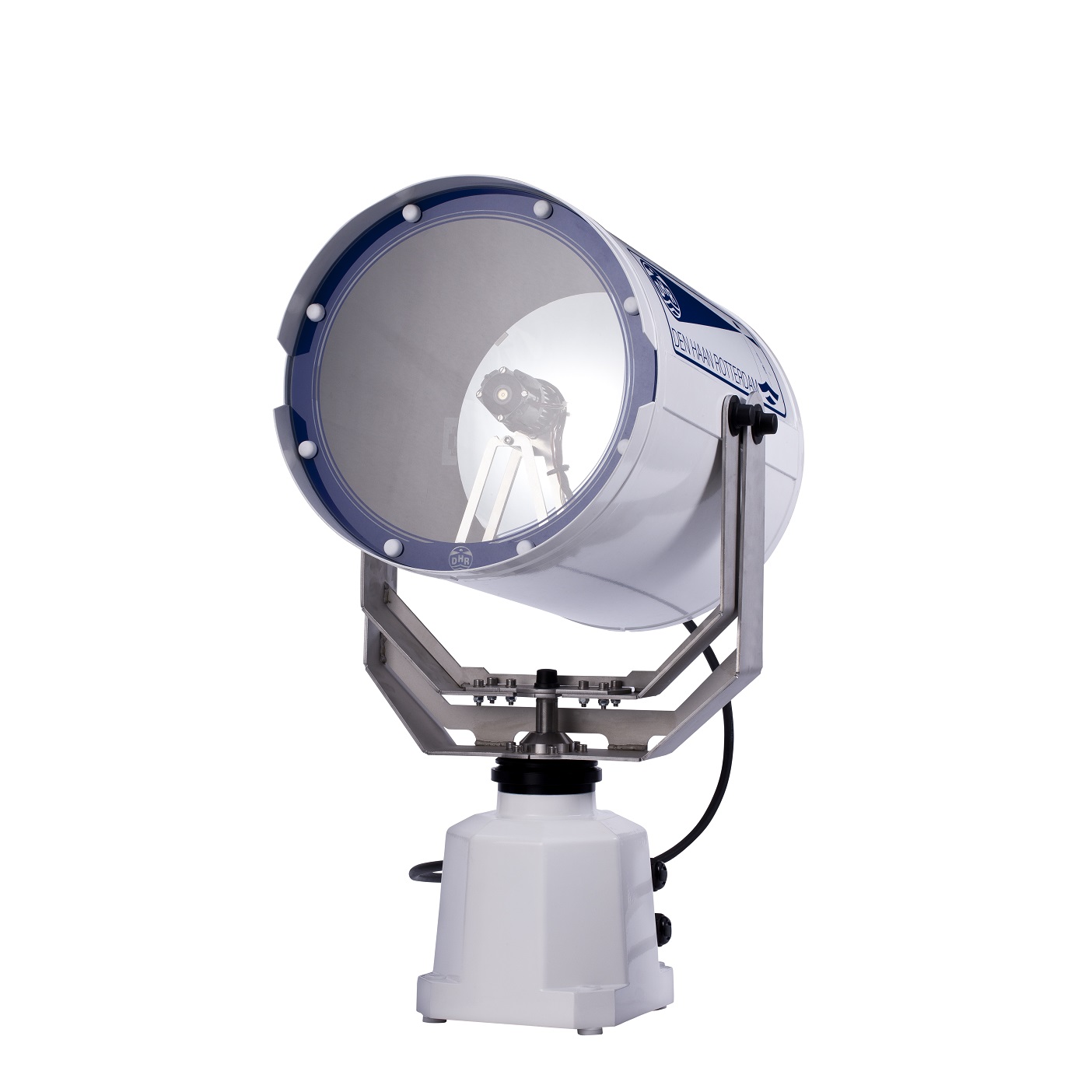

DHR320RCP
The 320RCP proves again that DHR has the know-how and know-why for adopting the best LED-technology available for searchlights. A perfect solution for tugs, workboats, high speed vessels and pilot boats. A big advancement, which uses a new revolutionary LED-chip having the highest lumen output per square mm2. It boosts up to 20.000 lumens from an area less than a square centimetre. Combine this with an optical system consisting of a glass lens and a silver-mirror reflector, it creates the highest performing LED searchlight to date.
 | Excellent optics |  | Focus control |
 | Light weight construction |  | Waterproof IP66 |
 | Maintenance friendly |  | LED technology |
Recently viewed
Materials
Chromated seawater resistant aluminium housing with a UV-resistant RAL9016 powdercoat finish.
All other materials are corrosion resistant and non-magnetic.Weight
28 KgOptics
Hardened glass
Parabolic mirror reflector Ø 300 mmProtection class
IP66 c/w Membrane ventMotor Unit
Pan 340º Speed 1,6° or 3,4°/ sec
Tilt +20º/-25º Speed 1,6° or 3,4°/ sec
Self regulating heating elementControl
Can be controlled by a control panel or joystick
Remote controllable beam width (focus)Control panel functions
On/off switch of the light source
On/off switch of the panel
Two-step speed control
Focus control
Pan/tilt through joystickControl panel protection
Protects motors against overloadControl panel extras
Relay included - for switching on the light source
You can connect a second control panel
ModelVoltageLight sourcePowerRange at 1 LuxFocusLight intensity (cd)Article codesRemote control 230VACLED200W1.700m4° - 20°3.200.000320RCP22
