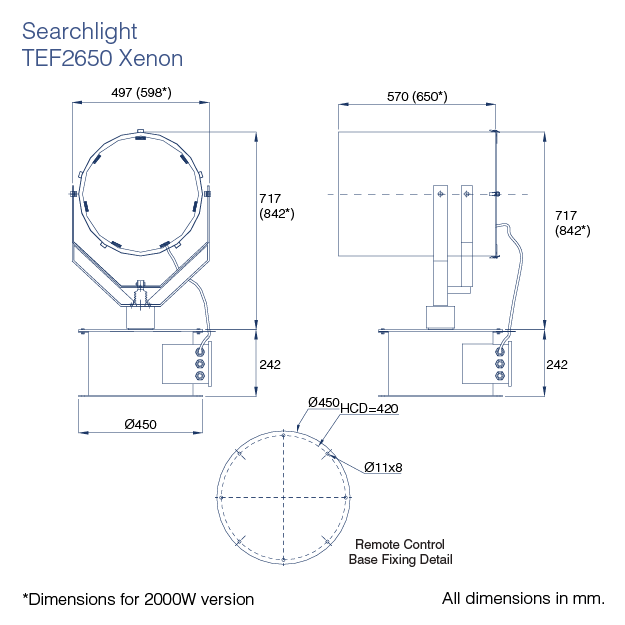

TEF2650 Xenon

TEF2650 Xenon

Quote
Robust designNarrow beam
Waterproof IP56High quality materials

Recently viewed

Manufacturer
Tranberg A.S.

Materials
Stainless steel housing with a UV-resistant RAL9010 powdercoat finish.
All other materials are corrosion resistant and non-magnetic.

Weight
1000W and 1600W version 72,5 Kg
2000W and 3000W version 82,5 Kg

Optics
Hardened Soda-Lime glass
Silver plated glass reflector

Protection class
IP56

Electric drive
Pan 370º Speed 40º p/s
Tilt +15º / -35º
Self regulating heating element in motor housing

Control
Can be controlled with TEF2613

Model

Voltage

Power

Range

Divergency

Light Intensity

Article Code

TEF2650 355mm mirror

115VAC

1000W

6.700m

2-7°

40.000.000cd

2650323440-69332

TEF2650 355mm mirror

230VAC

1000W

6.700m

2-7°

40.000.000cd

2650323440

TEF2650 355mm mirror

230VAC

1600W

7.400m

3-8°

52.000.000cd

2650324440

TEF2650 457mm mirror

230VAC

2000W

9.200m

2-7°

87.000.000cd

2650425440

TEF2650 457mm mirror

230VAC

3000W

11.500m

3-8°

91.000.000cd

2650426440



SKU:
2650323440-69332
/
Categories: DHR Marine, Searchlights
